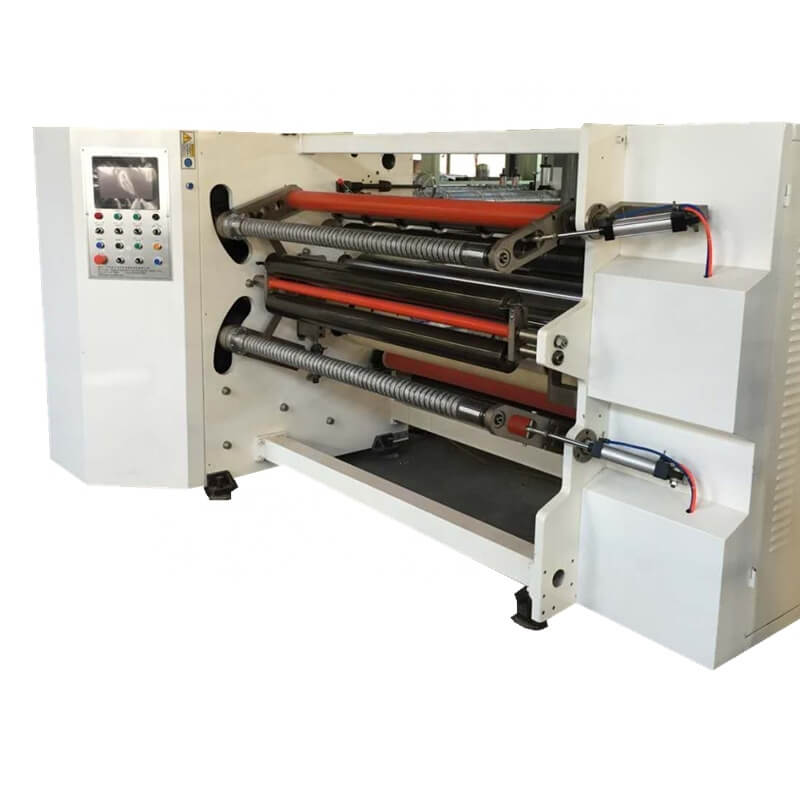

Automatic Window Film Slitting Machine

Automatic Window Film Slitting Machine

Application Field:
Suitable for slitting rewinding paper,film,adhesive tape such as fiber glass, BOPP,PE,PET,masking tape,double side tape,self adhesive material,release paper with or without glue…etc.

(customize,also can laminate film/strip)

Feature:

  • The machine is equipped with two sets of rewinding shaft with surface center rewinding to upgrade product smoothness.
  • Product tension  can be adjusted to suit various materials. It is equipped with a high performance controller for easy operation control.
  • The unwinding shaft can be adjusted forward/backward and right/left.
  • The counter provides conventient length setting.

Technical Parameter:

Dimension(l*w*h) 3600*4500*1850
Core components PLC, Bearing, motor
Driven type Electric
Power 10kw
Voltage 220V/380V/440V
Certification CE
Single package size 350X180X150 cm
Single gross weight 1500.000 kg

We provide all production line equipment for tape and film. Contact us to learn more

BOPP tape production line

Other tape production lines

Frequently Asked Questions:

Q: What is your company's main service?

We are a factory that specialises in the design and manufacturing of sticky tape machinery, catering for the whole production line.

Q: Where is your factory? Can I take a visit?

We are located in Taicang City, adjacent to Shanghai. The travel distance is less than 50km from Hongqiao International Airport.

Q: How do I make an order?

Contact our sales representative through this form, or our other social platforms. We will discuss the details of the machinery design and specifications. After reaching a mutual agreement, the deal is made and the order goes into manufacturing.

Q: Can you provide us some pictures and videos for the machines?

We are delighted to provide you with further information on the products. Please visit our socials or contact our sales representative for more.

Q: When will I receive the machine after billing the payment?

For regular products, we hold a ready stock to be delivered. For the manufacturing of custom-made products, smaller equipment will take around 45 working days, and large coating machines will take around 100 working days.

Q: Are you a manufacturing or trading company?

We are NOT a trading company. We are a manufacturer with integrated design and production capacity.

Q: Is it difficult to come for a visit?

We are closely adjacent to Shanghai Hongqiao Airport, and we can give you an easy ride. There are a number of international-grade hotels in Taicang that can provide you with cosy accommodation during your stay.
