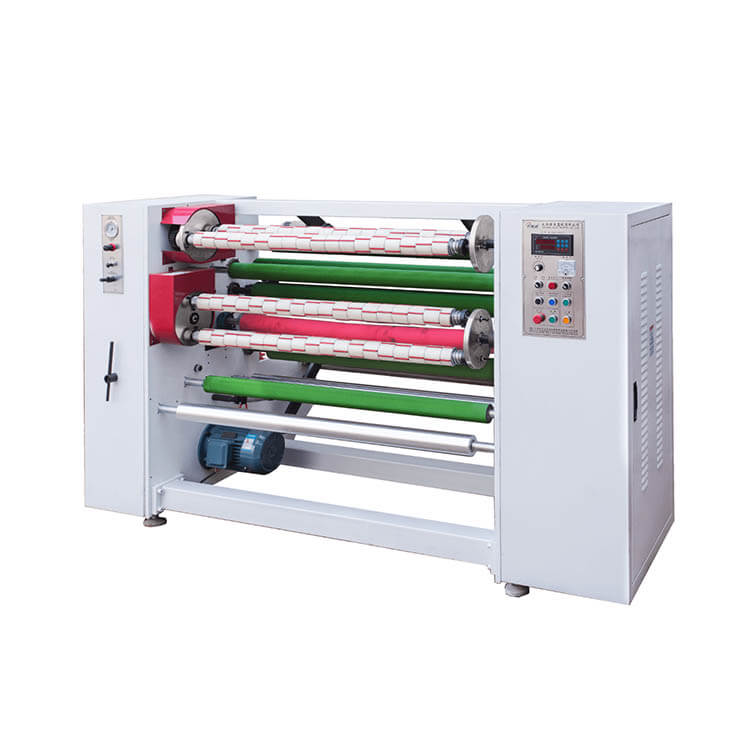

Super Clear Opp Tape Slitter Rewinder (YU-211)

Super Clear Opp Tape Slitter Rewinder (YU-211)

Application:

Suitable for the slitting of BOPP tape and stationery tape.

Features:

Optional :automatic labeling, sound insulation feeding, wagging collecting the leftover material

  • Centralized control of all buttons, easy operation.
  • The unwinding wheel is arch design, and wipes out the wrinkling of adhesive tape in the process of feeding.
  • Equipped with industrial blade (air blade) which suitable for the slitting of BoPP tape.
  • The leftover material winding could wag , reducing the tine of the leftover material changing of lap ,and raising of efficiency.
  • Oil pressure feeding mechanism could feed rapidly and reduce the labor intensity.(Optional)
  • Automatic labeling mechanism .improve economic performance.(Optional)
  • Feeding mechanism install with partition hood ,reduce spool-out noise of the material to achieve an ideal working condition.(Opfional)

Technical Parameters:

Raw material width 1020,1320,1620mm
Max feeding diameter
Φ1000mm
Slitting width 25-1320mm
Max rewinding diameter
Φ200mm(Max.)
Inside diameter of paper core
Φ25mm,Φ38mm,Φ76mm
Max rewinding speed 0-180M/min
Working air pressure 6 bar

We provide all production line equipment for tape and film. Contact us to learn more

BOPP tape production line

Other tape production lines

Frequently Asked Questions:

Q: What is your company's main service?

We are a factory that specialises in the design and manufacturing of sticky tape machinery, catering for the whole production line.

Q: Where is your factory? Can I take a visit?

We are located in Taicang City, adjacent to Shanghai. The travel distance is less than 50km from Hongqiao International Airport.

Q: How do I make an order?

Contact our sales representative through this form, or our other social platforms. We will discuss the details of the machinery design and specifications. After reaching a mutual agreement, the deal is made and the order goes into manufacturing.

Q: Can you provide us some pictures and videos for the machines?

We are delighted to provide you with further information on the products. Please visit our socials or contact our sales representative for more.

Q: When will I receive the machine after billing the payment?

For regular products, we hold a ready stock to be delivered. For the manufacturing of custom-made products, smaller equipment will take around 45 working days, and large coating machines will take around 100 working days.

Q: Are you a manufacturing or trading company?

We are NOT a trading company. We are a manufacturer with integrated design and production capacity.

Q: Is it difficult to come for a visit?

We are closely adjacent to Shanghai Hongqiao Airport, and we can give you an easy ride. There are a number of international-grade hotels in Taicang that can provide you with cosy accommodation during your stay.
