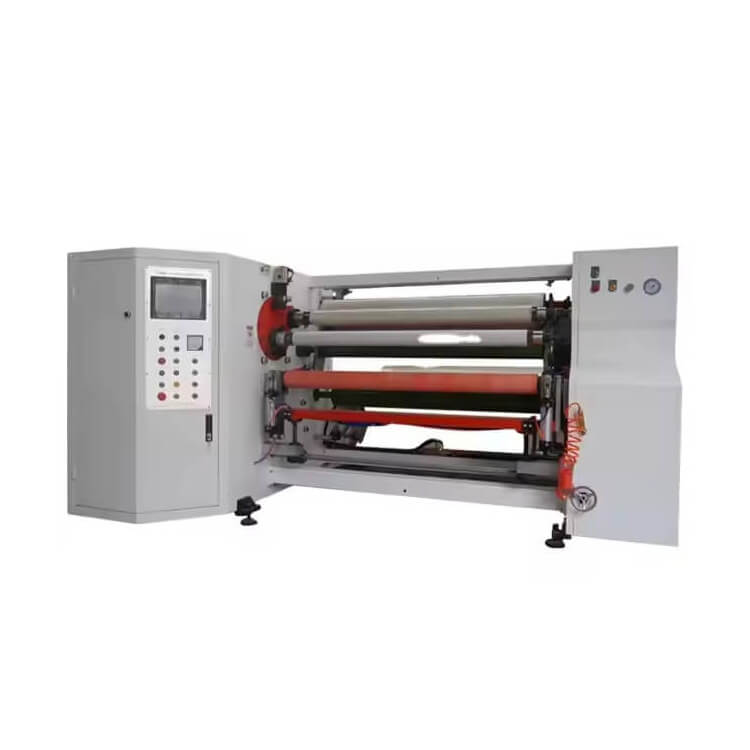

Full Automatic Double Shaft Exchange Adhesive Tape Rewinding Machine(Clear BOPP,OPP Tape Slitter Rewinder)
Application
Suitable for masking tape double sided tapes kraft paper tape rewinder machine
Feature
| 1. Automatic length setting: the two-step length counter provides accurate rewinding length control. Once the set length is reached, servo motor is adopted so that shafts will instantly and automatically change, ensuring easy operation and efficient performance. |
| 2. Programmable controller: the high performance programmable controller offers convenient control of the entire rewinding operation. Both length and tension are accurately displayed by LCD readout. |
| 3. The paper core is held firmly on the pneumatic shaft. With easy, fast loading and unloading, it greatly improves efficiency. |
| 4. Automatic smoothing device (optional): this wipe down device fully eliminates the problem of wrinkling and air bubbles in the product after rewindng. This device further ensures the smoothness of product. |
| 5. Oil pressure material loading device (optional): this device offers easy material loading for operational convenience and improves efficiency. |
| 6. The pressing roller is controlled by the cylinder and the pressure is adjustable. The semi-finished products are properly pressed to ensure smooth, stable running during rewinding. |
Main Technical Parameters
| Inside diameter of paper core | 25.4mm/76.2mm |
| Max rewingding speed | 180M/MIN |
| Main motor | 5HP*2 |
| Air pressure | 6bar |
| shaft | Single Shaft or Double Shafts |
| Machine dimension(L*W*H) | 3.4*1.82*1.6m |
| Main motor | 5HP |
We are a factory that specialises in the design and manufacturing of sticky tape machinery, catering for the whole production line.
We are located in Taicang City, adjacent to Shanghai. The travel distance is less than 50km from Hongqiao International Airport.
Contact our sales representative through this form, or our other social platforms. We will discuss the details of the machinery design and specifications. After reaching a mutual agreement, the deal is made and the order goes into manufacturing.
We are delighted to provide you with further information on the products. Please visit our socials or contact our sales representative for more.
For regular products, we hold a ready stock to be delivered. For the manufacturing of custom-made products, smaller equipment will take around 45 working days, and large coating machines will take around 100 working days.
We are NOT a trading company. We are a manufacturer with integrated design and production capacity.
We are closely adjacent to Shanghai Hongqiao Airport, and we can give you an easy ride. There are a number of international-grade hotels in Taicang that can provide you with cosy accommodation during your stay.
For any inquiry on the quotes and further product information, please contact our sales representative so we can assist you further.
