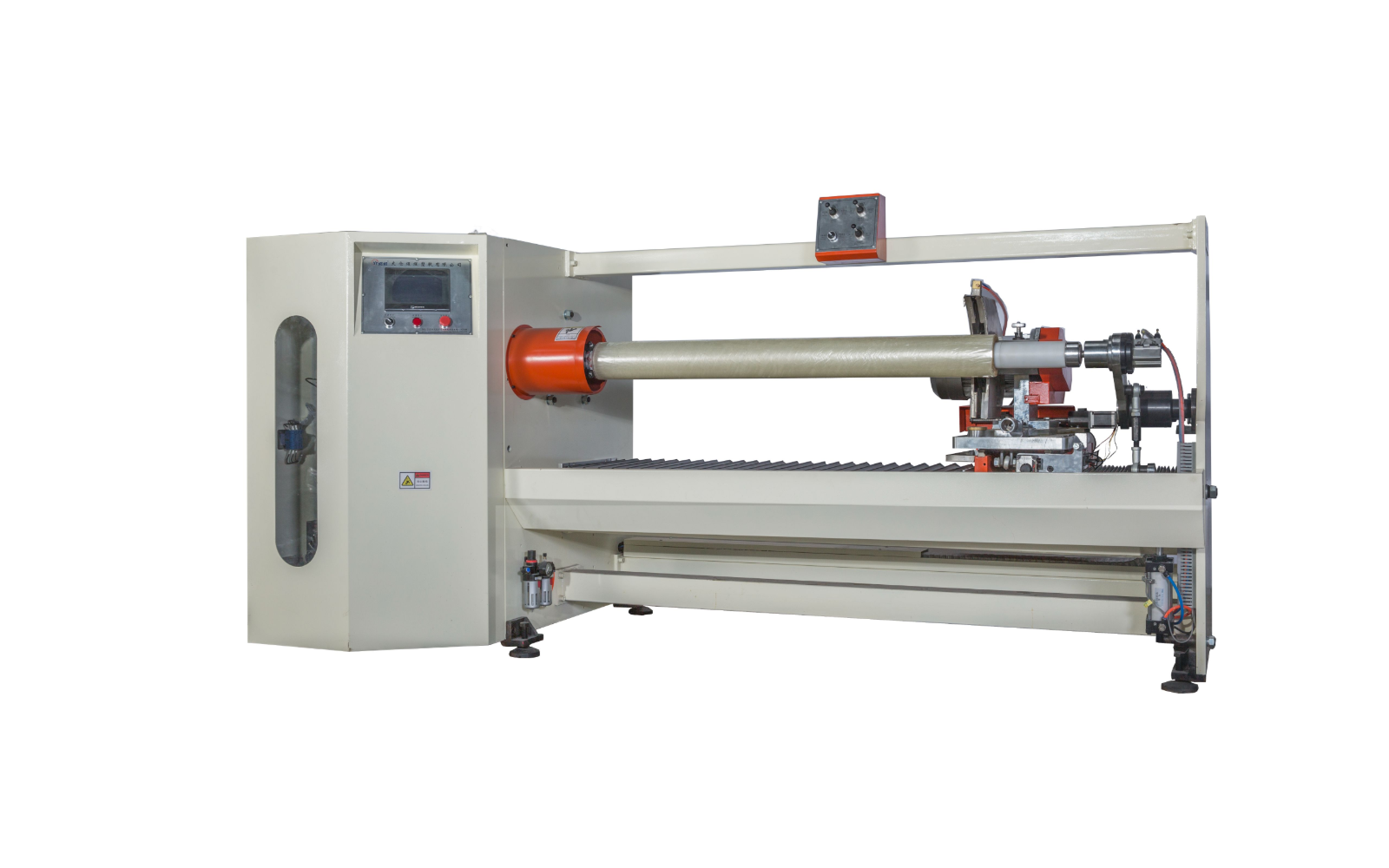

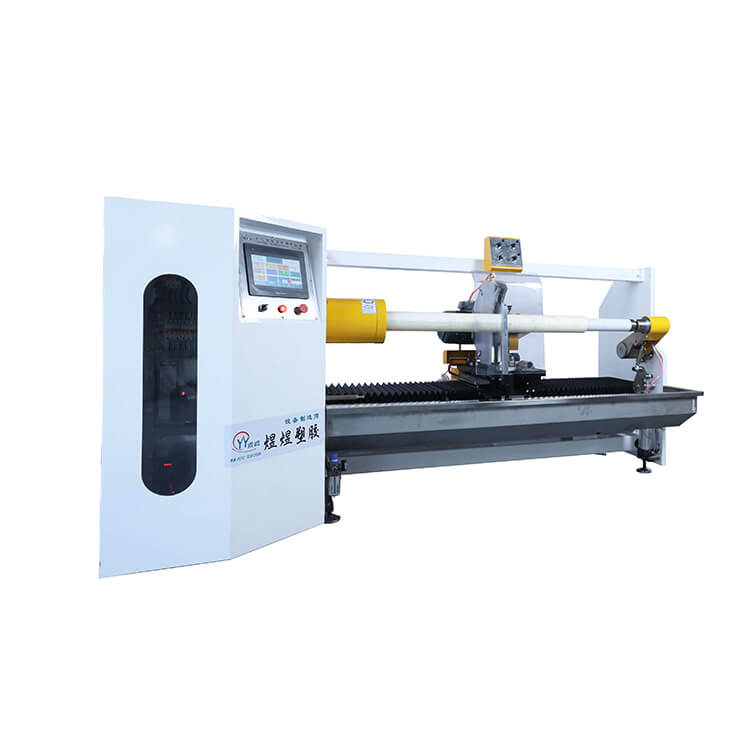

Single Shaft Cutting Machine (YU-701)

Single Shaft Cutting Machine (YU-701)

Application field:

Suitable for cutting various log roll materials such as Masking tape/Insulation tape/ fabric tape/polyester tape/PVC/OPP/PE/Double-side tape/Plastic films/windows film/3M tape/fiberglass mesh tape…etc.

Features:

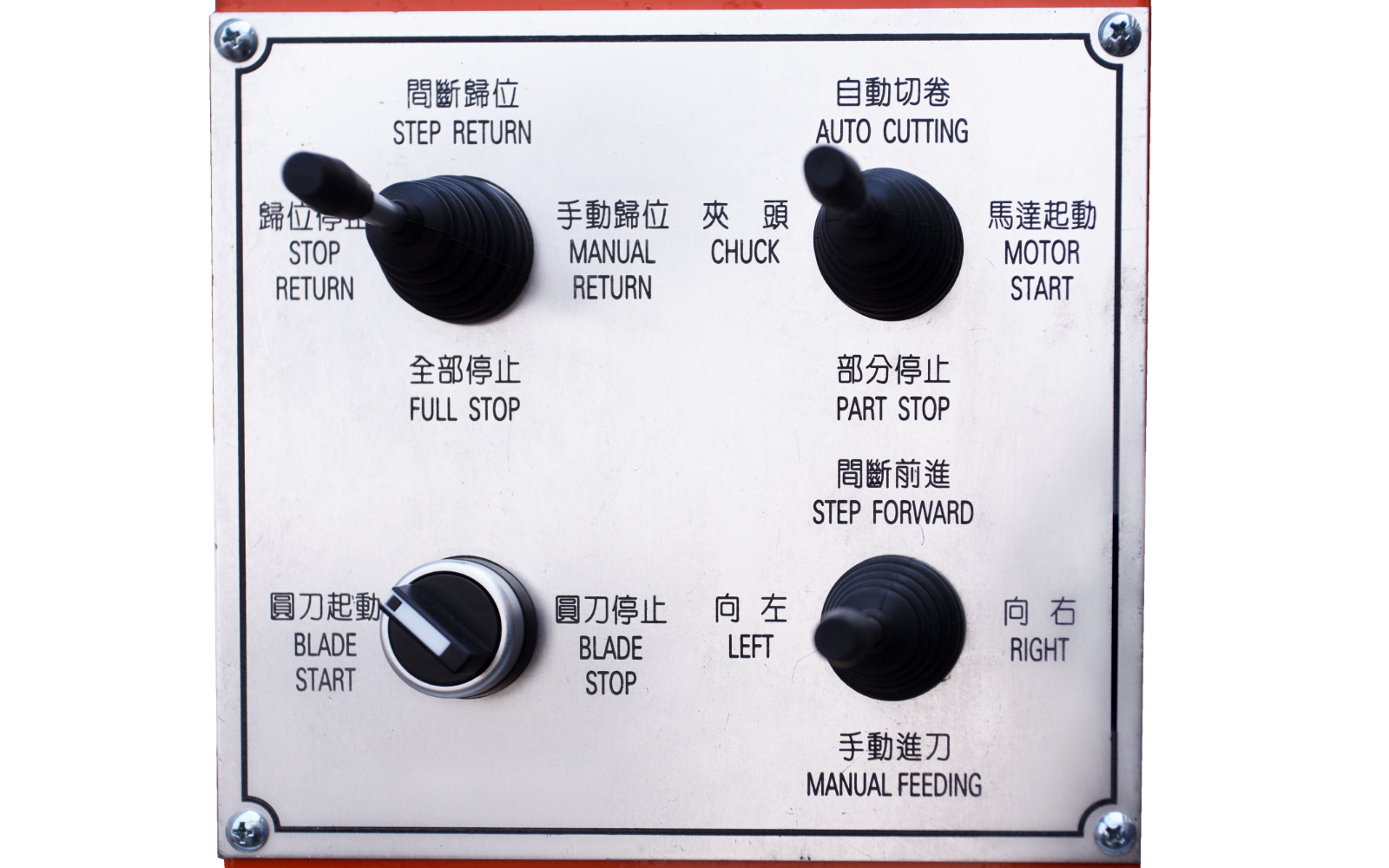

  1. Centralized control panel: all operation controls. For this machine are centralized in a control panel.
  2. Control panel provides major functions: material and blade running speed (LED screen display), width counter, number of cuts counter.

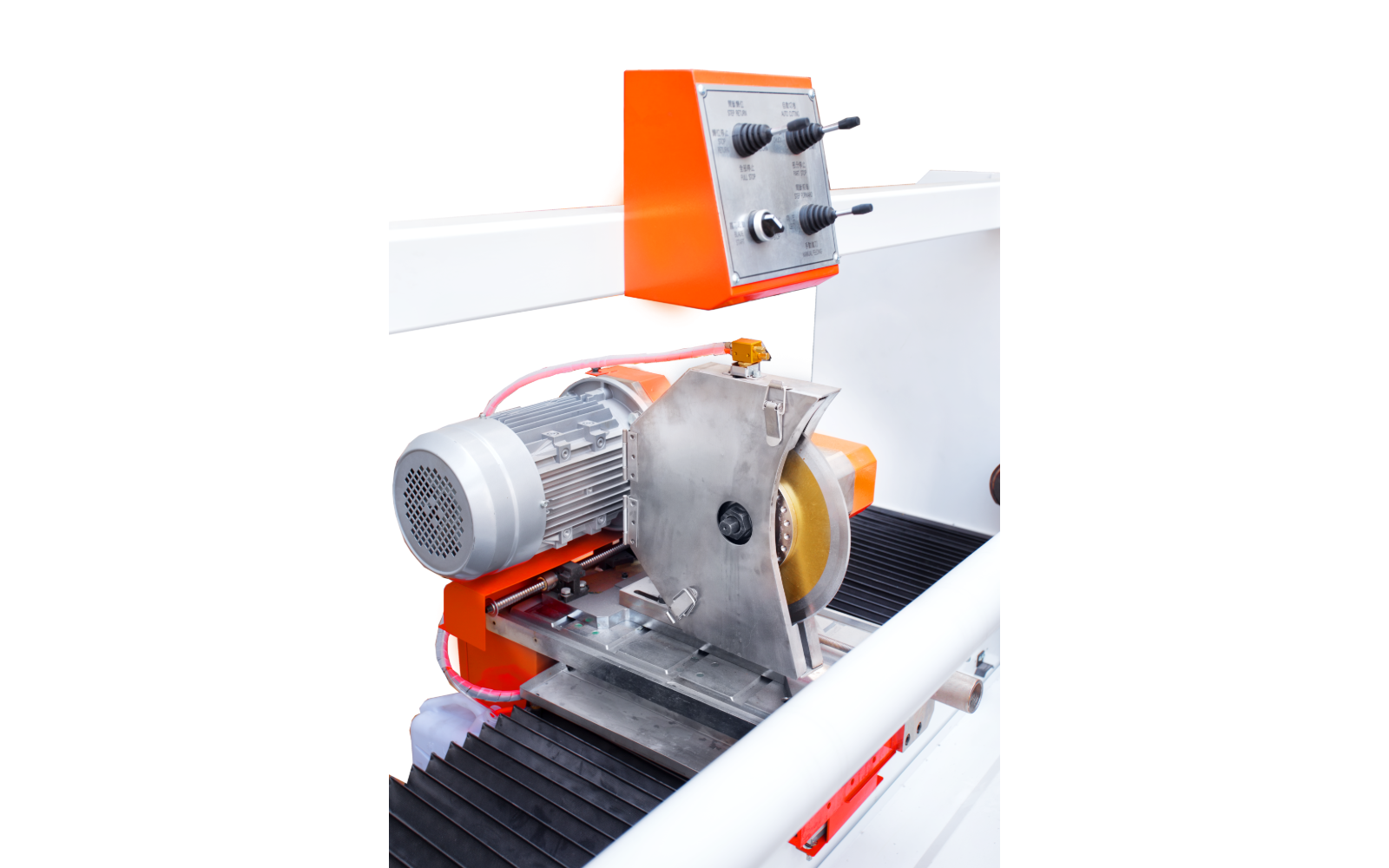

  3. Silicon lubricating system prevents the blade from sticking on adhesives and allows smooth cutting at all times. Silicon liquid is re-circulated.
  4. The blade is back pressure controlled through an air and hydraulic combination, giving maximum cutting stability and fast blade retract after each cut, cutting pressure can be easily adjusted to suit various types of materials.
  5. Cutting circular knife and main shaft power force adopted with AC step-less adjusting motor and available in any rotating direction.
  6. Cutting width setting up controlled by servo motor adjustable equipped with ball screw to secure accurate size.
  7. PLC programmable control.

Technical parameters:

Specification Details
Max. Cutting Diameter 250mm
Max. Cutting Speed 35 cuts/min
Max. Working Width 1300mm / 1600mm
Inside Diameter of Paper Core 32-76.2mm
Cutting Width 1-1600mm
Main Motor 5HP
Blade Drive Motor 3HP * 6P (Servo Motor)
Blade Diameter 150-350mm
Blade Speed 360-1800rpm
Weight 1150kg

We provide all production line equipment for tape and film. Contact us to learn more

BOPP tape production line

Other tape production lines
