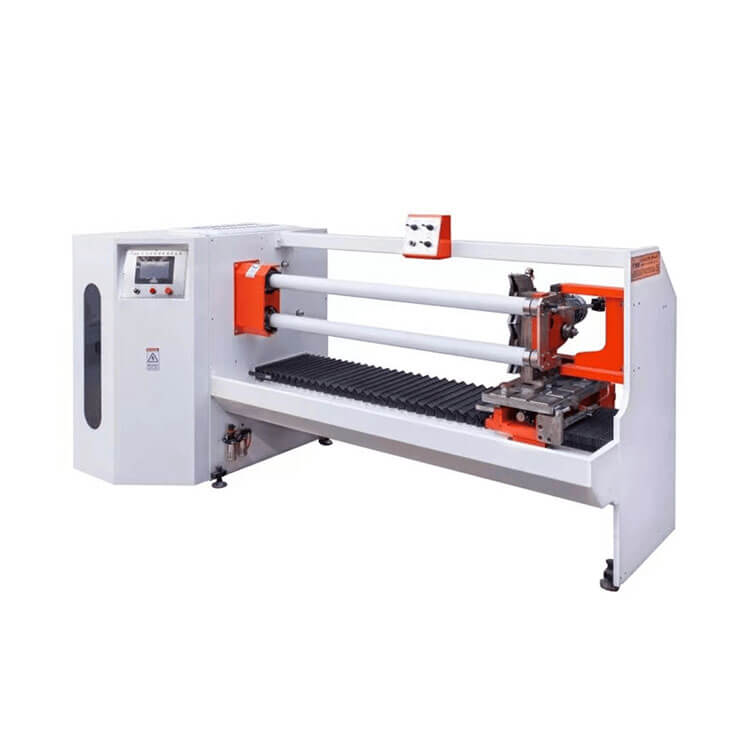

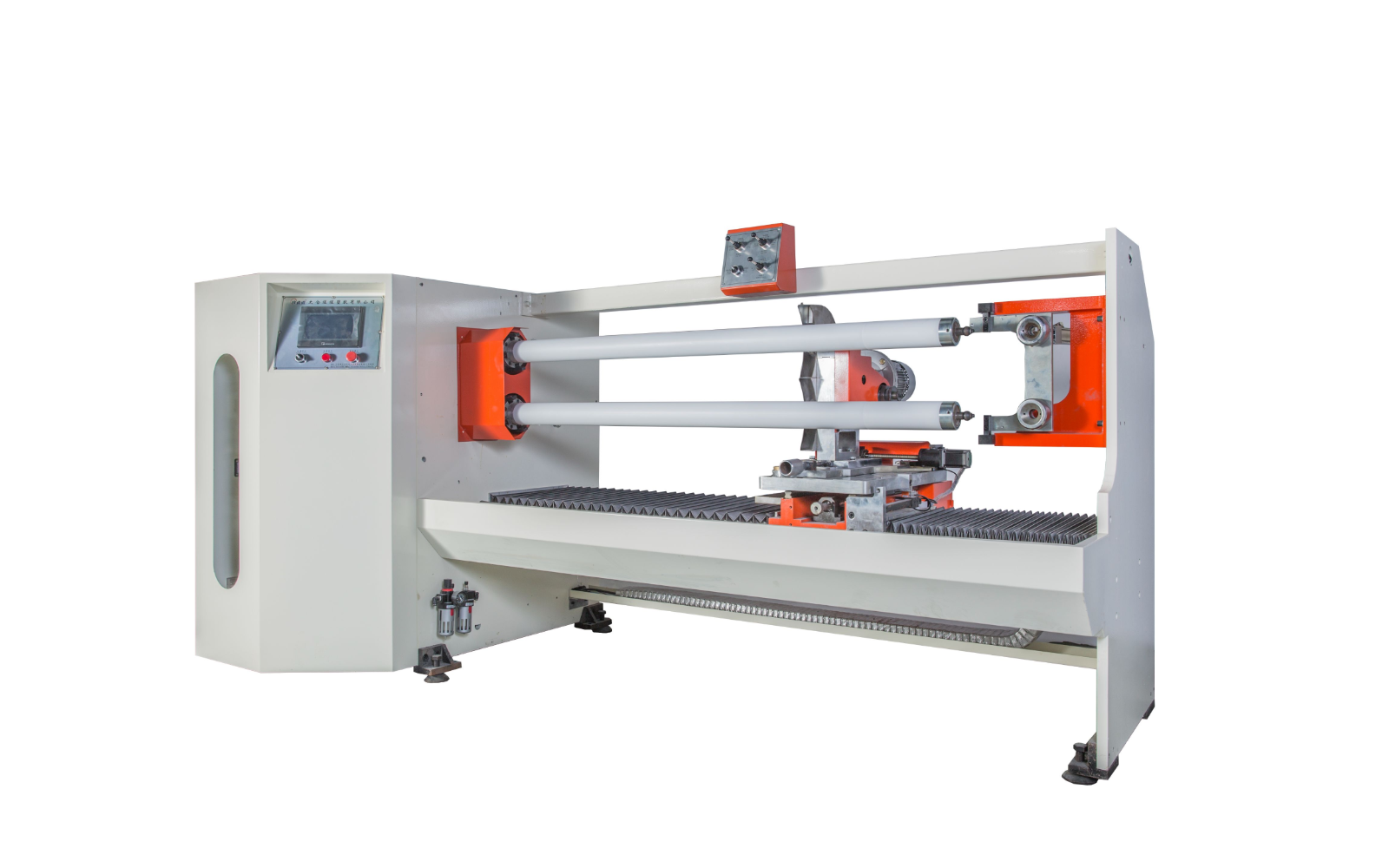

Double Shaft Cutting Machine (YU-703)

Double Shaft Cutting Machine (YU-703)

Application field:

This unit is suitable for cutting various materials such as PVC/OPP/PE/Masking tape/Double-side tape/Kraft tape/cloth tape…etc.

Features:

  1. Main driving parts: AC motor with inverter is employed and the acceleration and deceleration are fast and stable.
  2. Central control unit: programmable central control is used and various sizes can be set on the same shaft by automatic transfer and cutting.
  3. Operatingpanel: all functions are operated on the LCD touch panel.

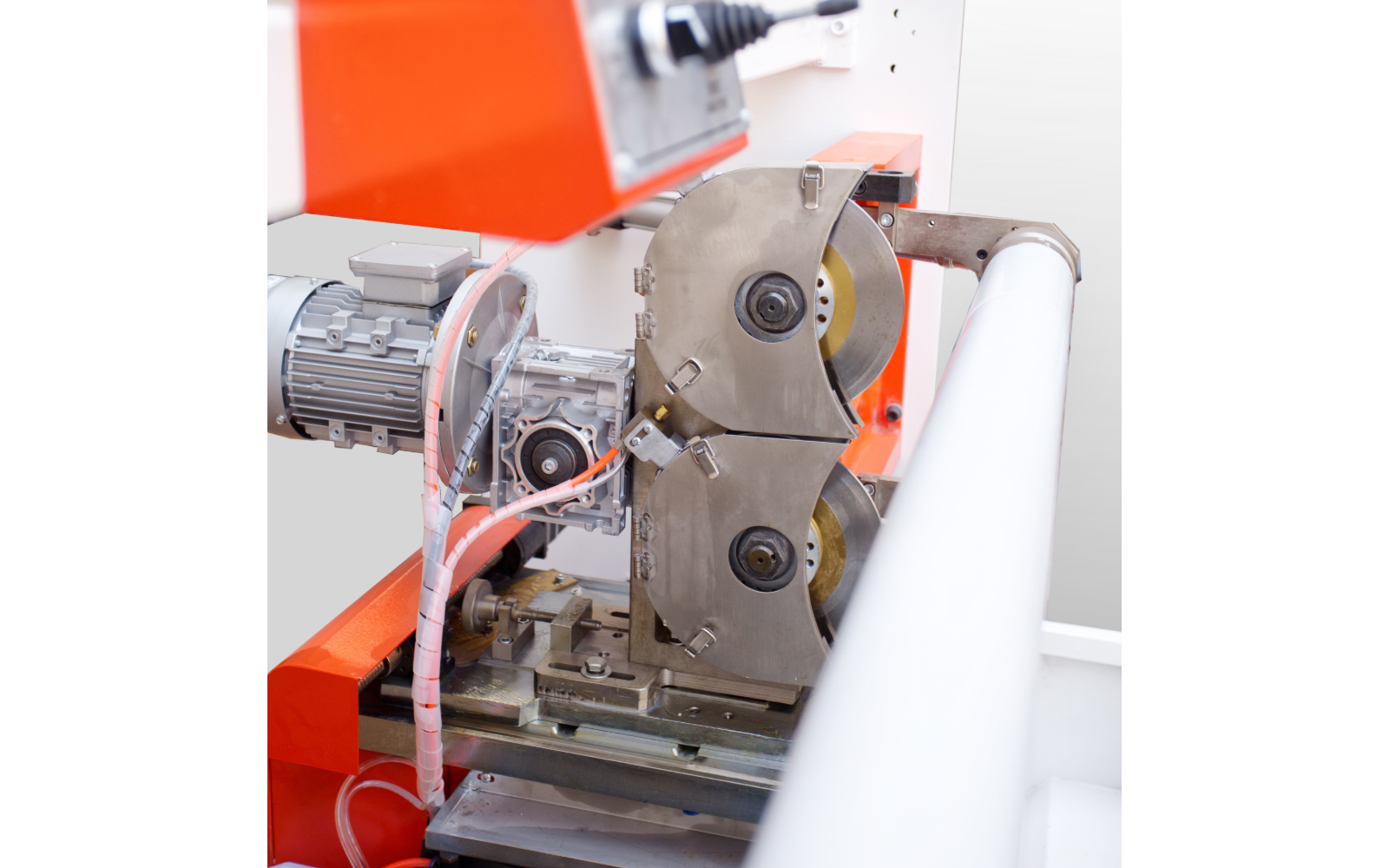

  4. Cutting roll positioning system: cutting roll positioning is controlled by servo motor. The imported high precision ball screw is applied to set the size and the liner slide rail is to bear the load of the utter seat.
  5. Auto adjusting the circular blade angle: the servo motor is used to calculate the circular blade angle and the angle is subject to different materials. The cutting angle is changed directly when the cutting surface is not smooth, so the efficiency is improved.



Specification Details
Valid Width 1.6m / 1.3m
Max. Cut Diameter 150mm
Min. Slitting Width 3mm
Inside Diameter of Paper Core 32-76.2mm
Blade Drive Motor 3HP
Material Roll Drive Motor 5HP
Blade Diameter 350mm
Weight 1450kg
Machine Dimension (L * W * H) 3790 * 1550 * 1750
Max. Cutting Speed 35 cuts/min

We provide all production line equipment for tape and film. Contact us to learn more

BOPP tape production line

Other tape production lines

Frequently Asked Questions:

Q: What is your company's main service?

We are a factory that specialises in the design and manufacturing of sticky tape machinery, catering for the whole production line.

Q: Where is your factory? Can I take a visit?

We are located in Taicang City, adjacent to Shanghai. The travel distance is less than 50km from Hongqiao International Airport.

Q: How do I make an order?

Contact our sales representative through this form, or our other social platforms. We will discuss the details of the machinery design and specifications. After reaching a mutual agreement, the deal is made and the order goes into manufacturing.

Q: Can you provide us some pictures and videos for the machines?

We are delighted to provide you with further information on the products. Please visit our socials or contact our sales representative for more.

Q: When will I receive the machine after billing the payment?

For regular products, we hold a ready stock to be delivered. For the manufacturing of custom-made products, smaller equipment will take around 45 working days, and large coating machines will take around 100 working days.

Q: Are you a manufacturing or trading company?

We are NOT a trading company. We are a manufacturer with integrated design and production capacity.

Q: Is it difficult to come for a visit?

We are closely adjacent to Shanghai Hongqiao Airport, and we can give you an easy ride. There are a number of international-grade hotels in Taicang that can provide you with cosy accommodation during your stay.
